Lightweight Design
DJI Dock 2 is 75% smaller and 68% lighter than its predecessor and is easily transportable with just two individuals, which makes for flexible installation and reduces installation costs.
DJI DOCK 2
PRE-ORDER
RM 34,000.00

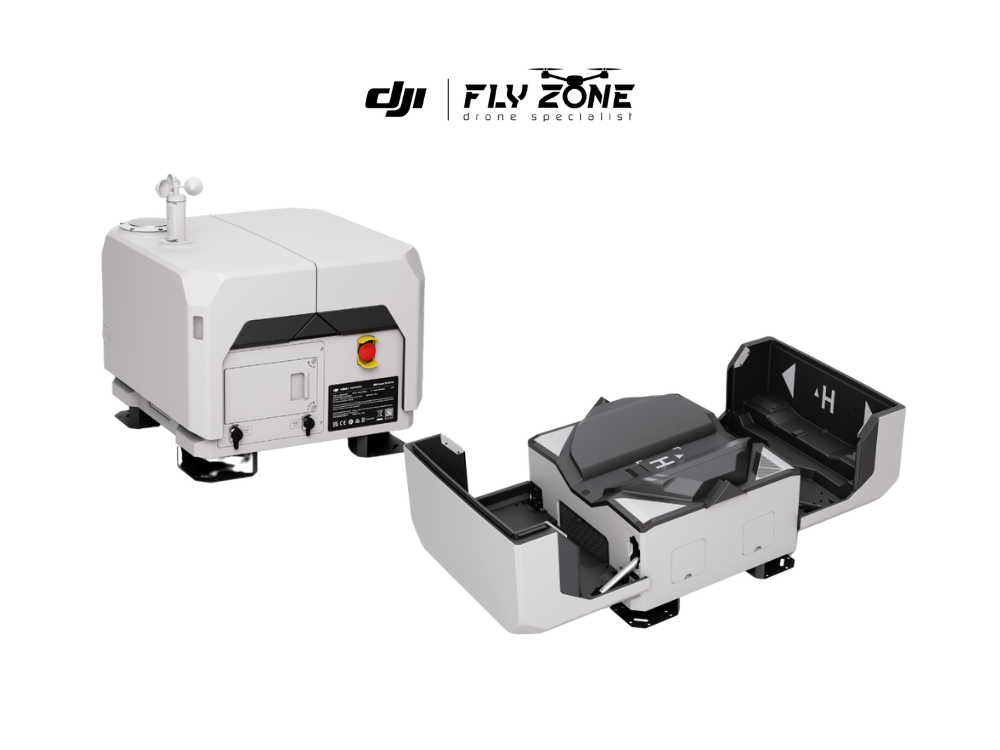

The more capable yet noticeably smaller DJI Dock 2 deploys Matrice 3D or 3TD drones with ease and security. Dock 2 is lightweight, offers high-level operation capabilities, and has cloud-based intelligent functions that bring efficiency and quality to automatic operations.
- Lightweight and Easy to Deploy
- IP55 Ingress Protection
- 10km Max Effective Operating Radius
- Integrated Environmental Monitoring System
- Cloud-Based Modeling
- FlyTo Tasks
- Private Deployment
- Third-Party Payload Support
Easy Deployment, Ready to Go
Efficient Site Evaluation
Before deployment, the aircraft can detect the surrounding environment using vision sensors and quickly determine whether the area has strong GNSS signals. [4] This new vision-based evaluation markedly accelerates site selection, reducing the required time from five hours to twelve minutes or less. [5]
Rugged, Reliable, Recharged
DJI Dock 2 integrates multiple sensors, including rainfall, wind speed, and temperature gauges, to perceive real-time weather changes. In conjunction with online weather forecasting, it can provide timely warnings or terminate flight tasks using DJI FlightHub 2 to effectively reduce flight risk.
Built-In Backup Battery
In the case of an unexpected power outage, DJI Dock 2 can continue to operate independently for over five hours [6] with the built-in backup battery, leaving sufficient time for the aircraft to return and land.
Six-Month Maintenance Interval
With its high level of protection and reliability, DJI Dock 2 only requires maintenance approximately every six months, [7] effectively controlling human resource costs.
Abnormal Condition Notifications
If DJI Dock 2 and the aircraft encounter task failures or emergencies, DJI FlightHub 2 will immediately send email notifications. This allows operators to accurately trace and troubleshoot problems based on the provided information.
High-Performance Aircraft Models
The all-new DJI Matrice 3D/3TD is specifically designed for DJI Dock 2. Matrice 3D is equipped with both a tele camera and a wide-angle camera with a mechanical shutter, meeting the needs for 1:500 high-precision mapping tasks. Matrice 3TD, outfitted with a wide-angle camera, a tele camera, and an infrared camera, can depict both visible light and thermal images, making it suitable for security and inspection operations.
DJI Matrice 3D
Wide-Angle Camera
4/3 CMOS
24mm Format Equivalent
20MP Effective Pixels
Mechanical Shutter
Tele Camera
1/2-inch CMOS
162mm Format Equivalent
12MP Effective Pixels
DJI Matrice 3TD
Wide-Angle Camera
1/1.32-inch CMOS
24mm Format Equivalent
48MP Effective Pixels
Tele Camera
1/2-inch CMOS
162mm Format Equivalent
12MP Effective Pixels
Infrared Camera
40mm Format Equivalent
Normal Mode: 640×512@30fps
UHR Infrared Image Mode: 1280×1024@30fps
(With the UHR Infrared Image function enabled, the aircraft automatically enables or disables UHR Infrared Image mode according to the ambient light brightness.)
28x Digital Zoom
